Lionik Lipo/Li-Ion Charger

Lionik Charger　 □　Lionik Adapter

_______________________________________________________________________________

NiMH/NiCd Charger　| 　 VRLA/SLA Charger | Mobile Charger　| Power charger

Lionik Lipo/Li-Ion Charger:

Item		Nominal Output	Suitable Battery	Dimension:
	LKLC5084	84V 50A	74V 200Ah	208 x 208 x 115mm
	LKLC3084	84V 30A	74V 100Ah	208 x 208 x 115mm
	LKLC2042	42V 20A	37V 50Ah	208 x 208 x 115mm
	LKLC1042	42V 10A	37V 20Ah	208 x 208 x 115mm

	LKLC5033	33.8V 5A	28.8V 16Ah	191 x 93 x 48mm
	LKLC5029	29.4V 5A	25.2V 15Ah	191 x 93 x 48mm
	LKLC5016	16.8V 5A	14.4V 12Ah	191 x 93 x 48mm
	LKLC1033	33.8V 10A	28.8V 16Ah	191 x 93 x 48mm

	LKLC0504	4.2V 0.5A	3.6V 3Ah	78 x 50 x 32mm
	LKLC0508	8.4V 0.5A	7.2V 2Ah	78 x 50 x 32mm
	LKLC0513	12.6V 0.5A	11V 1.5Ah	78 x 50 x 32mm
	LKLC0516	16.8V 0.5A	15V 1.5Ah	78 x 50 x 32mm

	LKLC1004	4.2V 1A	3.6V 2Ah	78 x 42 x 22mm
	LKLC1008	8.4V 1A	7.2V 2Ah	78 x 42 x 22mm
	LKLC1013	12.6V 1A	11V 2Ah	78 x 42 x 22mm
	LKLC1016	16.8V 1A	15V 2Ah	78 x 42 x 22mm

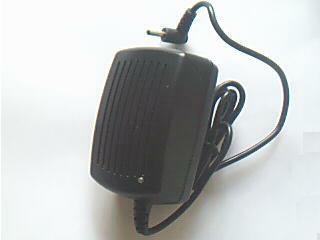

	LkLC2004	4.2V 2A	3.6 V 9Ah	78 x 50 x 32mm
	LkLC2008	8.4V 2A	7.2 V 5Ah	78 x 50 x 32mm
	LkLC2013	12.6V 2A	11 V 5Ah	78 x 50 x 32mm
	LkLC2016	16.8V 2A	14.4 V 4Ah	78 x 50 x 32mm

	LkLC3004	4.2V 3A	3.6V 15Ah	130 x 55 x 35mm
	LkLC3008	8.4V 3A	7.2V 15Ah	130 x 55 x 35mm

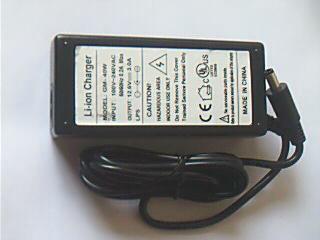

	LkLC3013	12.6V 3A	11V 10Ah	130 x 55 x 35mm
	LkLC3016	16.8V 3A	14.4V 10Ah	130 x 55 x 35mm
Cylindrical Li-ion Groove Charger & Adapter
	LkLS1865	4.2V 1.0A	3.7V 2100mAh	120 x 60 x 23mm
	LkLS1850	4.2V 0.8A	3.7V 1400mAh	120 x 60 x 23mm
	LkLS1750	4.2V 0.6A	3.7V 1100mAh	120 x 60 x 23mm
	LkLS1443	4.2V 0.4A	3.7V 750mAh	120 x 60 x 23mm
Mobile Battery of Standby Power
	LkLB1042	4.2V 1.0A	3.7V 2.2Ah	70 x 21 x 21mm
	LkLB0842	4.2V 0.8A	3.7V 1.5Ah	70 x 21 x 21mm
	LkLB0642	4.2V 0.6A	3.7V 1.0Ah	70 x 21 x 21mm
	LkLB0442	4.2V 0.4A	3.7V 1.0Ah	70 x 21 x 21mm

SPECIFICATIONS：

FEATURES:

High reliability,

Fast charge current

Compact size,light weight

with metal Fan

Short circuit protection

Over Charged protection

Fully enclosed plastic case

Red/yellow/green LED Display

3Pin XLR Connector

Approvals:Meeted UL/CE

1year warranty　

AC Input range
90~264VAC/
Cut-off condition
V>N x 4.15V + I <0.1C. or timer out.
Charging Indicator
Red:Fast Mod
Green:Finished/No battery
Fast Mode Current
1/2C~1/4C (Battery Capacity)
Constant Voltage charge
N x (4.25 ± 0.05)V
Build-in timer setup
1 ~ 10 Hours(option)
Operating temperature
-5℃ ~ 40℃
Withstand Voltage
I/P-O/P:3KVAC ,1min.
Safety standards
UL1950,UL1210,EN55022
Humidity
20%~90%RH
Note: Plug of DC output need be
defined by user
