Lionik VRLA/SLA Charger table:

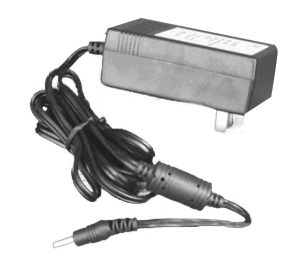

LK15XX Plug Wall Charger
LK30XX Table Charger
LK70XX Table Charger
Metal Casing Inner Charger
Input:88~280VAC
Input:88~280VAC

Input:88~280VAC

Input:160~280VAC

Rechargeable battery:4V 6V 12V 24V  3~7Ah

Rechargeable battery:4V 6V 12V 24V  5~12Ah
Rechargeable battery:12V 24V  36V  8~30Ah
Rechargeable battery:12V 24V  80~200Ah
Output Power:Max15W
Output Power:Max35W
Output Power:Max70W

Output Power:2M60XX 60W/ 2MA5XX 150W/2MC0XX 300W

Charging WaySmart 3 phases
(Constant current/Constant volt/maintenance)
Charging WaySmart 3 phases
(Constant current/Constant volt/maintenance)
Charging WaySmart 3 phases
(Constant current/Constant volt/maintenance)

Charging Way2 phases (Constant current/Constant volt/)

Charging display:Red-Charge
Green-Full/Remote
Charging display:Red-Charge
Green-Full/Remote
Charging display:Red-Charge
Green-Full/Remote
Charging display:Green
Protect Function:Short circuit/Over current
/Over temperature/Over volt
Protect Function:Short circuit/Over current
/Over temperature/Over volt
Protect Function:Short circuit/Over current
Over temperature/Over volt
Protect Function:Short circuit/Over current/Over temperature/Over volt
Isolating intensity:1.5KV 3.0KV selectable
Isolating intensity:1.5KV 3.0KV selectable
Isolating intensity:1.5KV 3.0KV selectable
Isolating intensity:1.5KV 3.0KV selectable
Transfer efficiency: >80%
Transfer efficiency: >80%
Transfer efficiency: >80%
Transfer efficiency: >85%

Dimension: 86 x 58 x 32mm

Dimension: 117x61x36mm
Dimension: 127x90x65mm
Dimension200X98X40
