     Lionik Lipo Blue Tooth Series Cell List
Model
Typical
Capacity
(mAh)
Minimum Capacity (mAh)

Impedence
(m)
Nominal
Voltage
(V)
Dimension of Bare cell
(mm)
Weight
(±0.5g)
Thickness (±0.2)
Width
(±0.5)
Length
(±0.5)
PL-551132
130
120
≤200
3.7
5.50
11.5
32.5
3.0
PL-451214
35
32
≤550
3.7
4.50
12.5
14.5
1.0
PL-041220
50
40
≤450
3.7
4.00
12.5
20.5
1.5
PL-051230
110
105
≤250
3.7
5.00
12.5
30.5
2.5
PL-061230
130
120
≤200
3.7
6.00
12.5
30.5
3.0
PL-041235
130
120
≤200
3.7
4.00
12.5
35.5
3.0
PL-451235
140
130
≤200
3.7
4.50
12.5
35.5
3.0
PL-051235
150
140
≤200
3.7
5.00
12.5
35.5
3.0
PL-551235
160
150
≤200
3.7
5.50
12.5
35.5
3.5
PL-061235
180
170
≤200
3.7
6.00
12.5
35.5
4.3
PL-061235L
160
150
≤200
3.7
5.80
12.5
35.5
3.5
PL-381245
140
135
≤200
3.7
3.80
12.5
45.5
3.5
PL-601245
260
250
≤200
3.7
6.00
12.5
45.5
5.5
PL-041430
120
110
≤180
3.7
4.00
14.5
30.5
3.0
PL-451430
140
130
≤180
3.7
4.50
14.5
30.5
3.0
PL-051430
155
150
≤180
3.7
5.00
14.5
30.5
4.5
PL-031445
120
110
≤180
3.7
3.00
14.5
45.0
3.8
PL-041445
180
170
≤180
3.7
4.00
14.5
45.0
4.0
PL-061445
310
300
≤180
3.7
6.00
14.5
45.0
7.0
PL-041528
110
100
≤180
3.7
4.00
15.0
28.0
2.5
PL-041630
140
130
≤180
3.7
4.00
16.5
30.5
3.5
PL-621640
350
340
≤100
3.7
6.20
16.5
40.5
7.0
PL-041730
170
160
≤180
3.7
4.00
17.0
30.0
3.7
PL-041745
260
250
≤180
3.7
4.00
17.0
45.0
5.5
PL-471745
310
300
≤180
3.7
4.70
17.0
45.0
6.0
PL-051745
330
320
≤180
3.7
5.00
17.0
45.0
6.7
PL-061745
390
380
≤180
3.7
6.00
17.0
45.0
7.8
PL-061752
480
470
≤80
3.7
6.00
17.5
52.5
9.0
PL-451753
360
350
≤180
3.7
4.50
17.0
53.0
7.7
PL-551753
430
420
≤180
3.7
5.50
17.0
53.0
8.8
PL-571753
460
450
≤180
3.7
5.70
17.0
53.0
9.5
PL-041834
190
180
≤150
3.7
4.00
18.5
34.5
4.5
PL-421936
180
165
≤135
3.7
4.20
19.5
36.5
4.5
PL-551936
250
230
≤150
3.7
5.50
19.5
36.5
4.5
PL-041939
230
220
≤135
3.7
4.00
19.5
39.0
5.2
PL-651939
410
400
≤135
3.7
6.50
19.5
39.0
8.0
PL-042025
140
130
≤165
3.7
4.00
20.5
25.5
3.0
PL-422025
150
140
≤165
3.7
4.20
20.5
25.5
3.1
PL-052025
190
180
≤150
3.7
5.00
20.5
25.5
4.0
PL-042028
170
160
≤150
3.7
4.00
20.5
28.5
3.5
PL-032030
130
120
≤135
3.7
3.00
20.0
30.0
3.5
PL-352030
150
140
≤135
3.7
3.50
20.5
30.5
4.0
PL-382030
180
170
≤135
3.7
3.80
20.0
30.0
4.5
PL-042030
200
190
≤135
3.7
4.00
20.5
30.5
5.0
PL-452030
220
210
≤100
3.7
4.50
20.0
30.0
5.3
PL-482030
240
230
≤100
3.7
4.80
20.0
30.0
5.5
PL-052030
250
240
≤100
3.7
5.00
20.5
30.5
6.0
PL-572030
270
260
≤100
3.7
5.70
20.5
30.5
6.3
PL-582030
290
280
≤100
3.7
5.80
20.0
30.0
6.5
PL-062030
310
300
≤100
3.7
6.00
20.0
30.0
6.8
PL-382035
220
210
≤100
3.7
3.80
20.0
35.0
4.8
PL-042035
240
230
≤100
3.7
4.00
20.0
35.0
5.0
PL-452035
280
270
≤135
3.7
4.50
20.5
35.5
6.0
PL-052035
300
310
≤100
3.7
5.00
20.0
35.0
6.5
PL-582035
350
340
≤100
3.7
5.80
20.0
35.0
6.6
PL-552036
320
305
≤90
3.7
5.50
20.5
36.5
8.5
PL-062036
350
340
≤100
3.7
6.00
20.5
36.5
8.5
PL-042060
500
450
≤100
3.7
4.00
20.5
60.5
9.5
PL-422060
420
400
≤80
3.7
4.20
20.5
60.5
9.0
PL-582131
320
305
≤100
3.7
5.80
21.5
31.5
6.5
PL-042223
150
140
≤100
3.7
4.00
22.0
23.0
3.5
PL-052223
170
160
≤100
3.7
5.00
22.0
23.0
3.6
PL-582235
330
315
≤100
3.7
5.80
22.5
35.5
7.0
PL-032236
180
170
≤100
3.7
3.00
22.0
36.0
4.0
PL-052236
380
365
≤100
3.7
5.00
22.0
36.0
7.5
PL-062236
410
400
≤100
3.7
6.00
22.0
36.0
8.5
PL-482239
370
350
≤100
3.7
4.80
22.5
39.5
7.5
PL-032248
250
240
≤100
3.7
3.00
22.5
48.5
5.5
PL-042248
360
350
≤100
3.7
4.00
22.5
48.5
8.0
PL-452248
420
400
≤100
3.7
4.50
22.5
48.5
9.0
PL-052248
470
460
≤80
3.7
5.00
22.5
48.5
8.0
PL-552248
540
520
≤80
3.7
5.50
22.5
48.5
10.0
PL-062248
570
550
≤60
3.7
6.00
22.5
48.5
11.5
PL-062351
660
650
≤100
3.7
6.00
23.0
51.0
13.5
PL-052439
410
400
≤80
3.7
5.00
24.0
39.0
8.5
PL-062439
510
500
≤80
3.7
6.00
24.0
39.0
10.0
PL-562447
580
560
≤80
3.7
5.60
24.5
47.5
12.0
PL-452533
340
300
≤120
3.7
4.50
25.0
33.0
6.6
PL-052540
430
410
≤80
3.7
5.00
25.5
40.5
8.0
PL-552540
480
460
≤80
3.7
5.50
25.5
40.5
9.0
PL-062540
560
545
≤80
3.7
6.00
25.5
40.5
11.0
PL-622540
585
565
≤80
3.7
6.20
25.5
40.5
11.0
PL-032730
180
170
≤100
3.7
3.00
27.5
30.5
4.5
PL-362730
250
240
≤100
3.7
3.60
27.5
30.5
5.0
PL-382730
270
260
≤100
3.7
3.80
27.5
30.5
5.5
PL-422730
290
280
≤100
3.7
4.20
27.5
30.5
6.5
PL-522730N
320
310
≤100
3.7
5.20
27.0
30.5
8.0
PL-552730
360
350
≤100
3.7
5.50
27.5
30.5
8.5
PL-042933
330
320
≤120
3.7
4.00
29.0
33.0
7.0
PL-063028
400
380
≤120
3.7
6.00
30.5
28.5
8.5

General Specifications
Nominal Capacity (1) 190mAh
Nominal Voltage (2) 3.70V
Resistance 150m
Charging Voltage (Max.) 4.20.05V
Discharging Current (Max.) 380mA

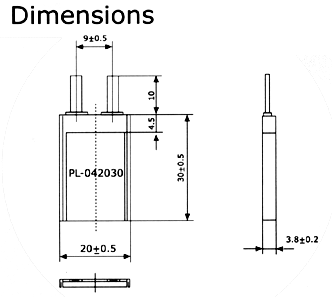

Dimensions (T,W,H) (3) 3.80.2×20.00.5×30.00.5 mm
Cycle Life >400 cycle
Self-discharge <10%
Operating
Temperature
Range		 Charge 0°C～45°C
Discharge -20°C～60°C
Storage -20°C～40°C
Energy Density Volume 280Wh/L
Weight 170Wh/kg
Weight(Approx.) (3) 4.00.5g

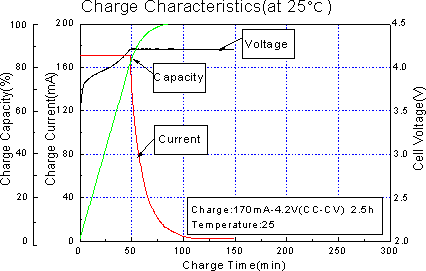

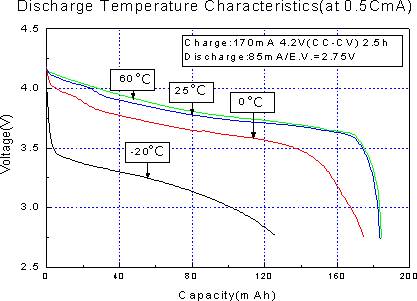

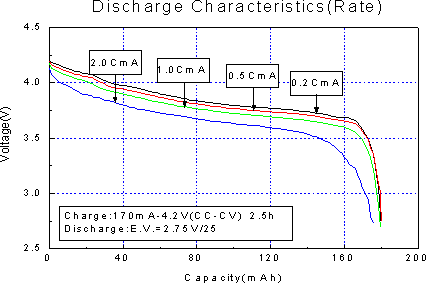

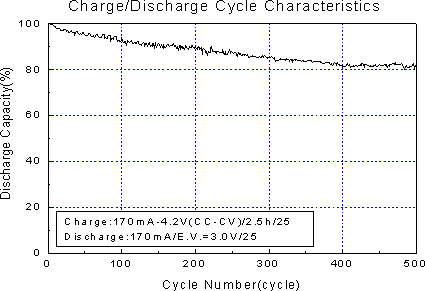

General Characteristics Charts
