 Lionik lipo For Abnormity Series Cell List: |
| |
Model |
Typical Capacity
(mAh) |
Minimum Capacity (mAh) |
Impedence
(m ) |
Nominal
Voltage
(V)
|
Dimension of Bare cell
(mm) |
|
Thickness
(±0.2) |
Width
(±0.5) |
Length
(±0.5) |
PL-393094A |
960 |
920 |
≤45 |
3.7 |
3.90 |
30.5 |
94.5 |
18.0 |
PL-093080A |
2150 |
2100 |
≤40 |
3.7 |
9.00 |
30.5 |
80.0 |
41.0 |
PL-423442A |
580 |
550 |
≤60 |
3.7 |
4.20 |
34.5 |
42.5 |
10.5 |
PL-043650A |
690 |
650 |
≤45 |
3.7 |
4.00 |
36.5 |
50.5 |
13.0 |
PL-043248A |
600 |
580 |
≤60 |
3.7 |
4.00 |
32.5 |
48.5 |
12.0 |
PL-493444A |
700 |
680 |
≤45 |
3.7 |
4.90 |
33.5 |
44.5 |
13.5 |
PL-425250A |
870 |
830 |
≤45 |
3.7 |
4.20 |
52.5 |
50.5 |
17.0 |
PL-456373A |
2300 |
2250 |
≤30 |
3.7 |
4.50 |
63.0 |
73.0 |
43.0 |
|
| |
| Features: Protective shield location is moved forward,the capacity is raised to an elevation of 31% . |
| |
| Typical Lionik Cell For Abnormity Battery (1) - PLA423442 |
| |
|
| |
| Nominal Capacity (1) |
550mAh |
| Nominal Voltage (2) |
3.70V |
| Resistance |
<37m |
| Charging Voltage (Max.) |
4.2 0.05V |
| Discharging Current (Max.) |
1100mAh |
| Dimensions (T,W,H) (3) |
4.000.2×34.01.0×42.01.0 mm |
| Cycle Life |
>400 cycle |
| Self-discharge |
<8% |
Operating
Temperature
Range |
Charge |
0°C～45°C |
| Discharge |
-20°C～60°C |
| Storage |
-20°C～40°C |
| Energy Density |
Volume |
320 Wh/L |
| Weight |
170 Wh/kg |
| Weight(Approx.) (3) |
11.00.5g |
|
- Nominal Capacity: Discharge Current0.2C, End of Voltage 2.75V, Temperature 25°C.
- Nominal Voltage(Average Discharge Voltage): Discharge Current 0.2C, End of Voltage 2.75V, Temperature 25°C.
- These Values show the dimensions and weight of the bare battery.
|
| |

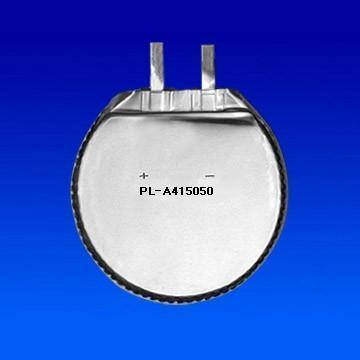

| Typical Lionik Cell For Abnormity Battery (2) - PLA415050 |
| |
|
| |
| Nominal Capacity (1) |
720mAh |
| Nominal Voltage (2) |
3.70V |
| Resistance |
<30m |
| Charging Voltage (Max.) |
4.20.05V |
| Discharging Current (Max.) |
1440mAh |
| Dimensions (T,W,H) (3) |
4.00.2×52.01.0×50.01.0 mm |
| Cycle Life |
>400 cycle |
| Self-discharge |
<8% |
Operating
Temperature
Range |
Charge |
0°C～45°C |
| Discharge |
-20°C～60°C |
| Storage |
-20°C～40°C |
| Energy Density |
Volume |
350 Wh/L |
| Weight |
175 Wh/kg |
| Weight(Approx.) (3) |
16.50.5g |
|
- Nominal Capacity: Discharge Current0.2C, End of Voltage 2.75V, Temperature 25°C.
- Nominal Voltage(Average Discharge Voltage): Discharge Current 0.2C, End of Voltage 2.75V, Temperature 25°C.
- These Values show the dimensions and weight of the bare battery.
|
| |

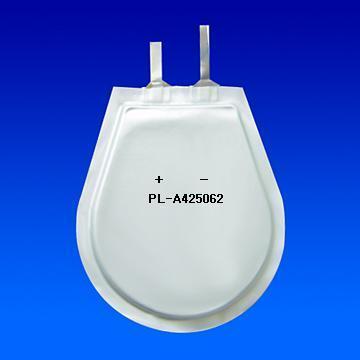

| Typical Lionik Cell For Abnormity Battery (3) - PLA425062 |
| |
|
| |
| Nominal Capacity (1) |
1100mAh |
| Nominal Voltage (2) |
3.70V |
| Resistance |
<30m |
| Charging Voltage (Max.) |
4.20.05V |
| Discharging Current (Max.) |
2200mAh |
| Dimensions (T,W,H) (3) |
4.00.2×50.01.0×62.01.0 mm |
| Cycle Life |
>400 cycle |
| Self-discharge |
<8% |
Operating
Temperature
Range |
Charge |
0°C～45°C |
| Discharge |
-20°C～60°C |
| Storage |
-20°C～40°C |
| Energy Density |
Volume |
300 Wh/L |
| Weight |
170 Wh/kg |
| Weight(Approx.) (3) |
23.00.5g |
|
